■ LCS series / 40-120W

Product Feature

Output Power Range: 40-120W
Mode: CC Isolated Flicker-free
Type: Iron clad structure, IP20
Input over voltage protection @ 330-390Vac
Protection: Input Over Voltage/ No-Load / Short Circuit / Overload/ ClassⅠ

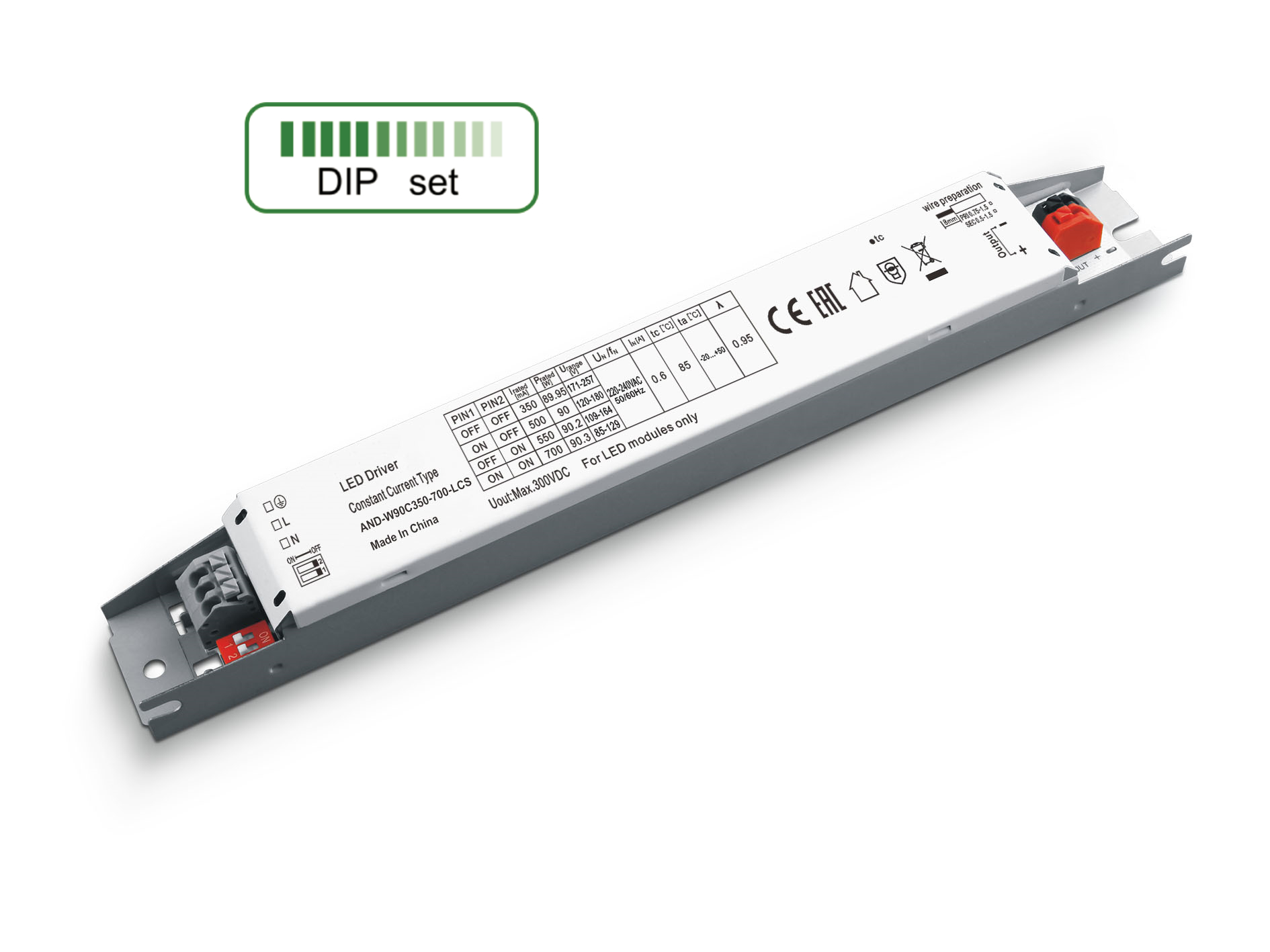

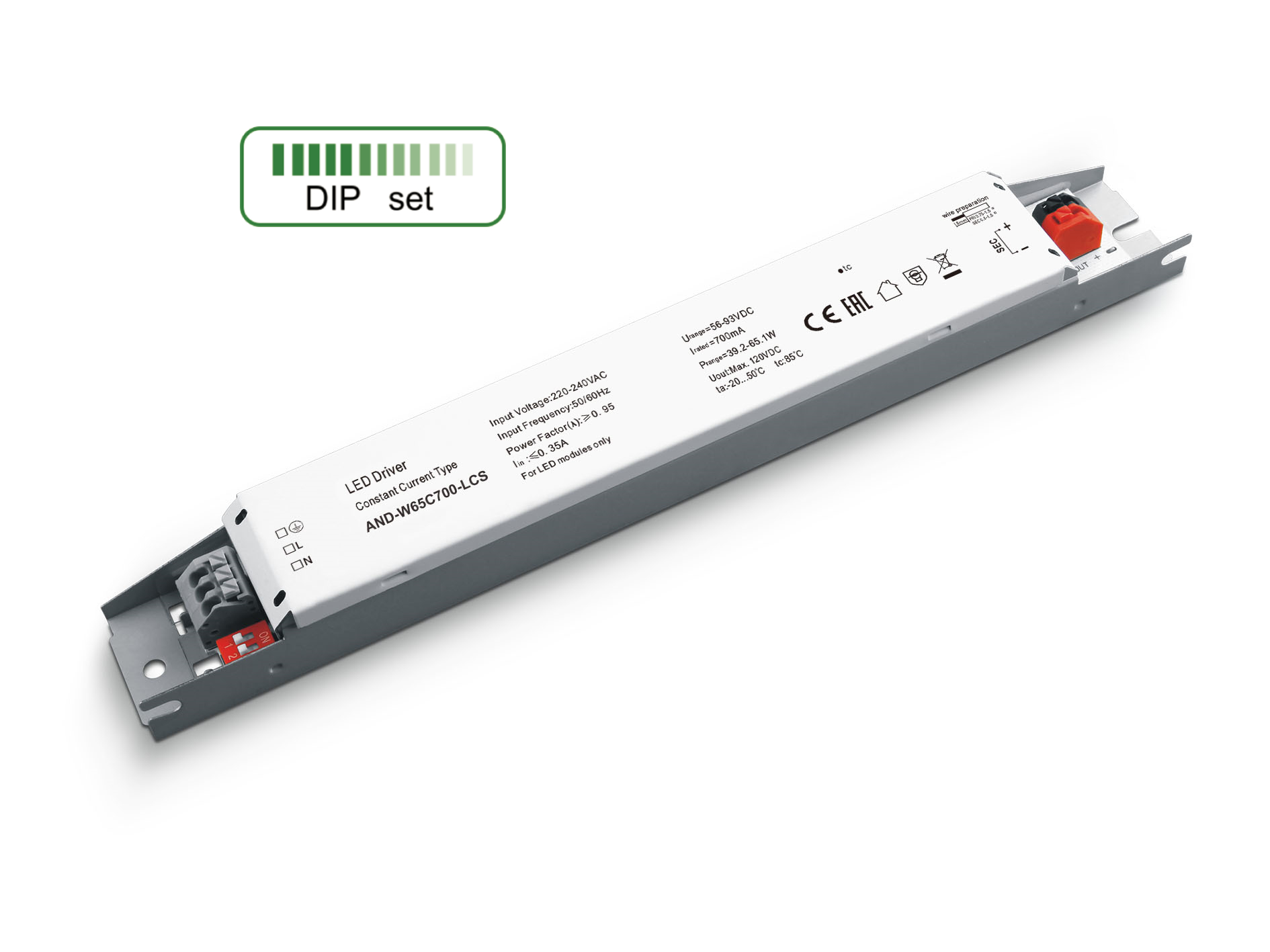

Current selection 4 steps, by DIP
Surge protection: DM 1KV, CM 2KV
Start time:≤0.5s (230VAC, full load)
Ambient Temp: -20-50℃
Storage Temp: -25-85℃
Warranty: 5 Years

■ Product Parameter:

Model	Power	Input Voltage	Output Voltage	Output Current	Efficiency	PF	Size (mm) (LWH)
AND-W40C250-400-LCS	40W	220-240Vac	85-257V	0.25/0.3/0.35/0.4A	≥90%	≥0.95	15327.821
AND-W65C350-500-LCS	65W	220-240Vac	111-186V	350mA	≥94%	≥0.95	2303021
AND-W65C350-500-LCS			78-130V	500mA
AND-W65C700-LCS			56-93V	700mA
AND-W65C300-LCS			130-220V	300mA	≥93.5%	≥0.95
AND-W90C350-700-LCS	90W	220-240Vac	85-257V	0.35/0.5/0.55/0.7A	≥90%	≥0.95	2803021
AND-W120C700-LCS	120W	220-240Vac	125-170V	0.7A	≥90%	≥0.95	2803021

■ Application :

Linear light, Tri-proof light

■ Safety Certification:
